Intelligent lithium battery chargers (usually referring to microprocessor based "smart chargers") have made significant progress in technology and user experience compared to traditional "dumb chargers" or ordinary chargers. Let's analyze its advantages and disadvantages in detail below.

The core advantages of intelligent lithium battery chargers



High charging efficiency and fast speed

Adopting multi-stage charging algorithmA typical intelligent charging process includes trickle charging, constant current charging, constant voltage charging, and trickle/pulse maintenance. This algorithm can quickly charge most of the battery with the highest possible current without damaging the battery, greatly reducing the charging time.

Greatly extend battery life

precise controlThe microprocessor monitors the voltage, current, and temperature of the battery in real-time to ensure that the charging parameters are always within the safe and healthy range of the battery.

Prevent overchargingAfter the battery is fully charged (the constant voltage stage current drops to the set value), it will automatically cut off charging or switch to a small trickle/pulse maintenance mode, effectively preventing battery bulging, capacity decay, and safety hazards caused by continuous overcharging.

Prevent over placement and repairFor batteries with low voltage caused by excessive discharge, small current "wake-up" or "repair" (pre charging) will be carried out first, and then fast charging will be carried out after returning to normal, which can save some batteries on the brink of scrap.

Extremely high security

Multiple protection mechanismsUsually integrated with overvoltage protection, overcurrent protection, short circuit protection, reverse connection protection, temperature monitoring protection, etc. Once an abnormality is detected, charging will be immediately stopped and error codes may be displayed through indicator lights or screens, effectively preventing serious accidents such as fires and explosions.

Temperature monitoringDynamically adjust the charging current based on the battery temperature through built-in or external temperature sensors. For example, automatically reducing the current or pausing charging when the battery overheats, and resuming after cooling.

Strong universality and rich functionality

Multiple battery types supportedMany smart chargers can be selected through buttons to charge different types of lithium batteries, such as Li ion (18650, etc.), LiFePO4 (lithium iron phosphate), LiPo (for model aircraft), etc., because they have different voltage characteristics.

Multiple battery quantity supportSupports charging battery packs with different numbers of strings (such as 1S to 6S, etc.).

Additional featuresProvide professional functions such as discharge, cycling (charge discharge), internal resistance measurement, capacity testing, etc., which are very practical for electronics enthusiasts, model airplane players, etc.

Good user experience

Information VisualizationClear display of current charging status, voltage, current, charged capacity, battery internal resistance and other information through LED indicator lights, digital tubes or LCD screens, allowing users to have a clear understanding of the battery condition.

Disadvantages of intelligent lithium battery chargers

relatively high cost

Due to its built-in microprocessor, precise voltage and current detection circuit, various protection chips, and high-quality components, its manufacturing cost is much higher than that of a simple transformer and rectifier circuit, making it more expensive.

Relatively complex operation

For users who are accustomed to "plug in and use", the buttons and menus for mode selection, current setting, battery type selection, etc. on smart chargers may appear complex and require a certain learning cost. If set incorrectly (such as selecting the wrong battery type), it may result in charging failure or even damage to the battery.

The volume is usually large

In order to achieve complex functions and good heat dissipation, smart chargers usually have more complex circuit boards and are equipped with cooling fans, resulting in a generally larger volume and weight than simple chargers, and slightly lower portability.

There may be compatibility issues

Although highly versatile, for some non-standard or lithium batteries with special communication protocols (such as batteries for certain brands of power tools), ordinary smart chargers may not be able to recognize or charge properly, requiring original or dedicated chargers.

Dependent on external power source

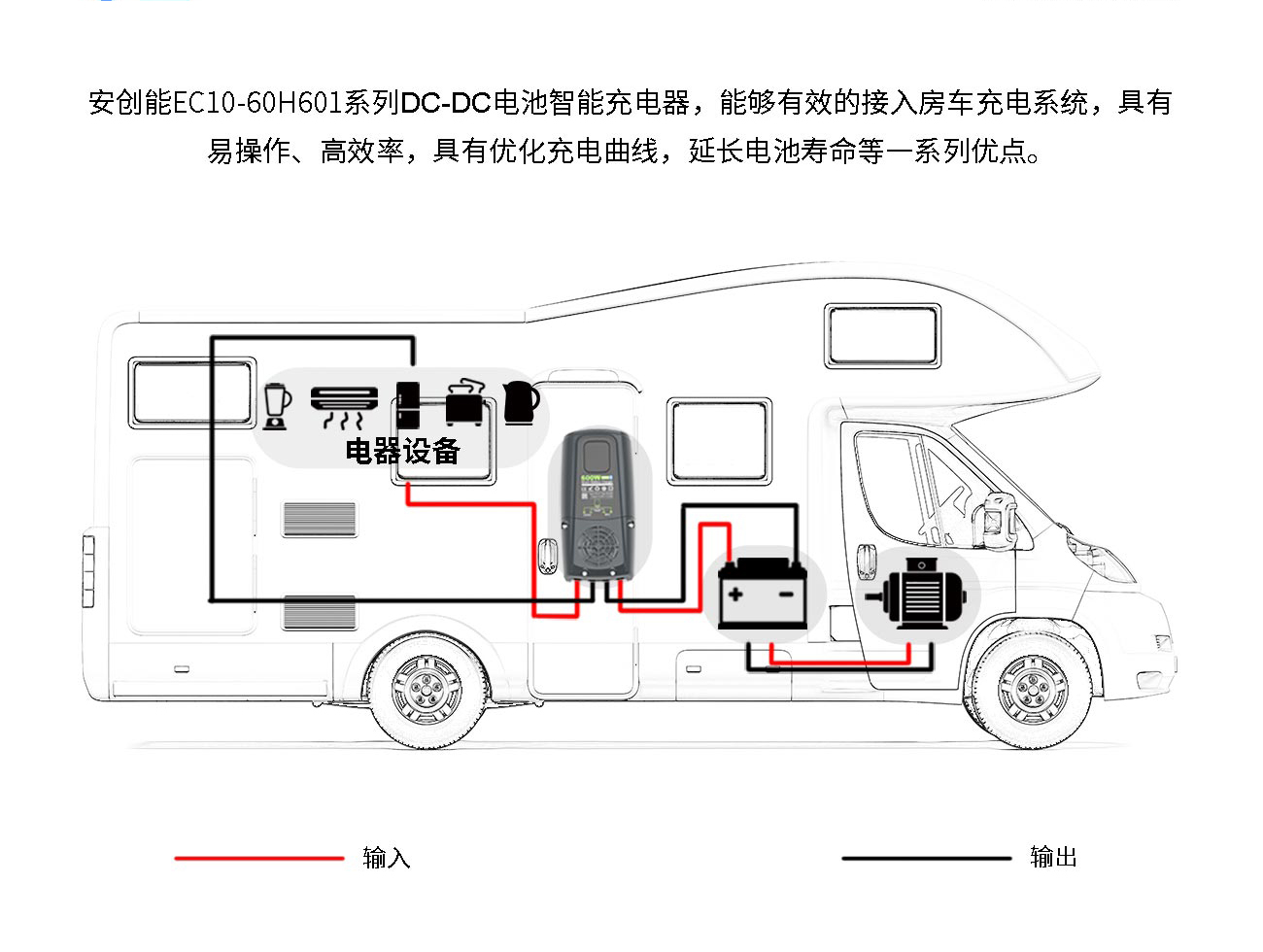

Most desktop smart chargers require connection to a DC power source (such as a car power source) or AC mains power to function, which limits their use in pure outdoor environments without electricity (although there are also models that can be paired with high-power power banks or outdoor power sources).
